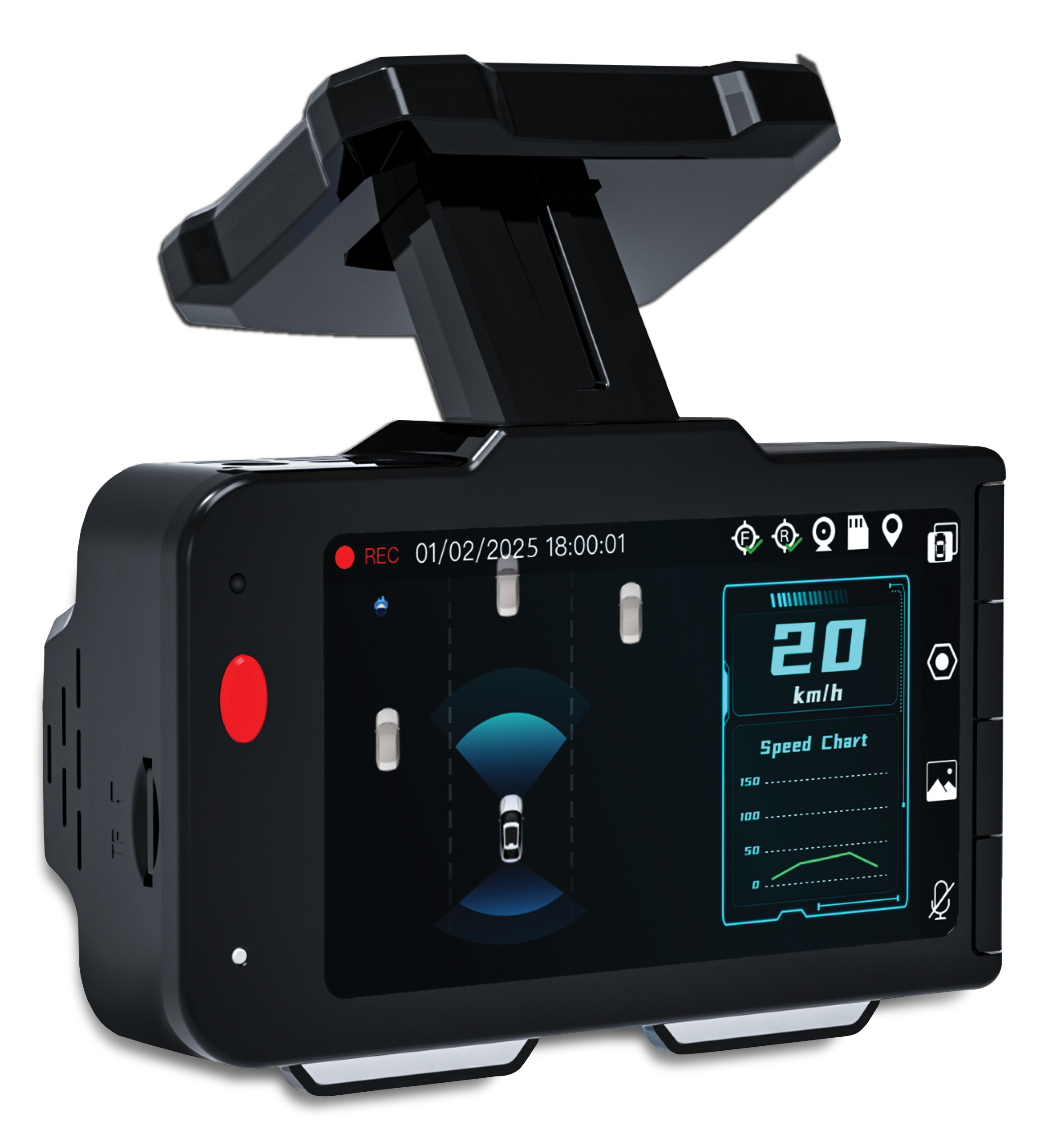

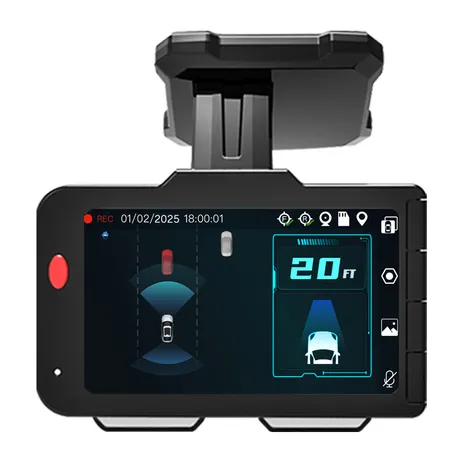

ACADC5

4K AI Dash Cam

The ACADC5 AI Dash Cam is a cutting-edge vehicle safety solution designed to elevate every drive with powerful ADAS (Advanced Driver Assistance System) features and ultra-clear video recording. Equipped with dual-lens recording—4K front and 1080p rear—the ACADC5 captures every detail, day or night, thanks to its Sony Starvis sensor with night vision and Wide Dynamic Range (WDR) technology. With built-in GPS, impact sensors, and voice-activated alerts for Forward Collision Warning, Lane Departure, Pedestrian Detection, Rear Collision, and more, this AI-powered dash cam offers real-time driver assistance to reduce risks and enhance awareness. Ideal for personal vehicles, commercial fleets, and rideshare operators, the ACADC5 brings unparalleled protection, parking mode monitoring, and seamless loop recording—all accessible through a sleek 3" display. Upgrade your vehicle with the ACADC5 and drive smarter, safer, and with greater peace of mind.

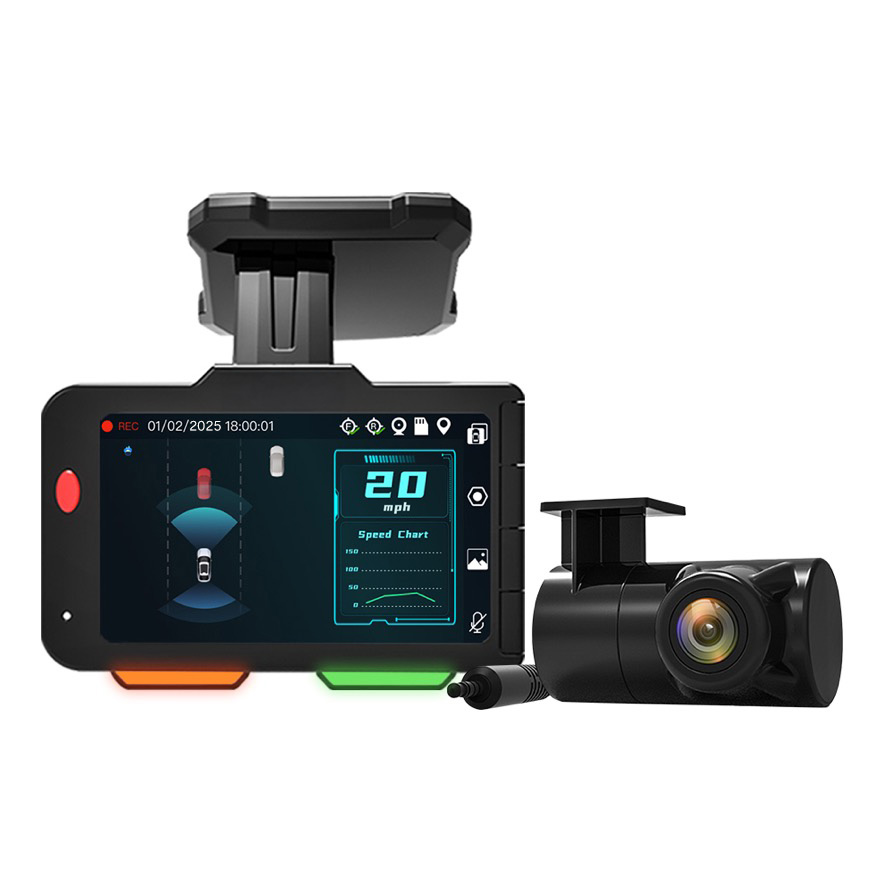

  • Dual Lens Front 4K + Rear 1080P @ 30FPS
  • Sony Starvis CMOS Sensor
  • 140° Wide Angle View
  • 3’’ Clear display
  • Built-in GPS location and speed logging
  • Built-in impact sensor
  • Parking mode
  • Automatic recording and loop recording
  • Includes 64GB Micro SD Card
  • 3 Record mode(Normal, Emergency, Packing Mode)
  • Forward Collision Warning
  • Rear Collision Warning
  • Pedestrian Collision Warning
  • Lane Departure Warning
  • Lane Changing Departure
  • Lane Changing Assistant
  • Virtual Bumper
  • Stop & Go

Processor:

  • SigmaStar SSC8838G

Image Sensor:

  • Front: Sony IMX415

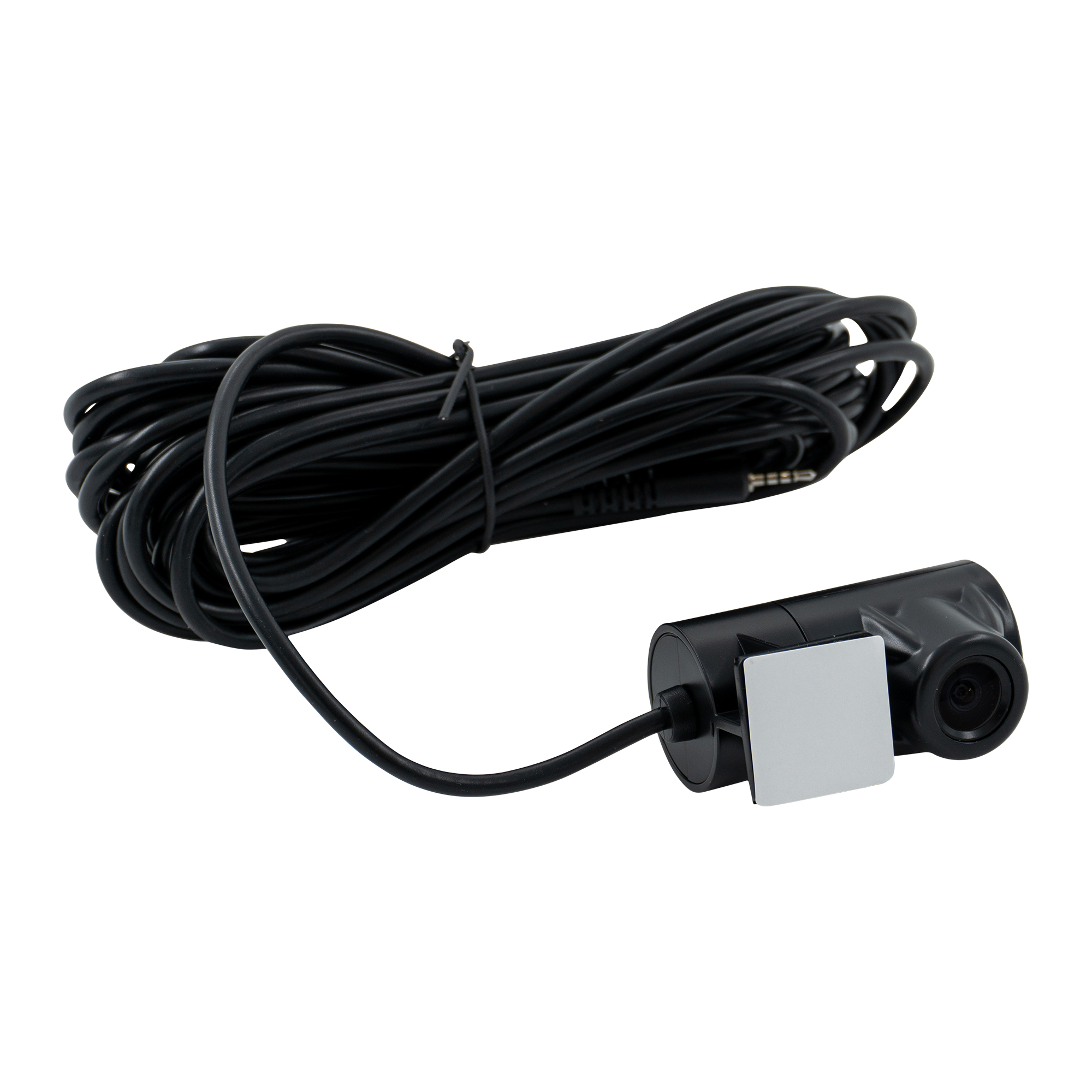

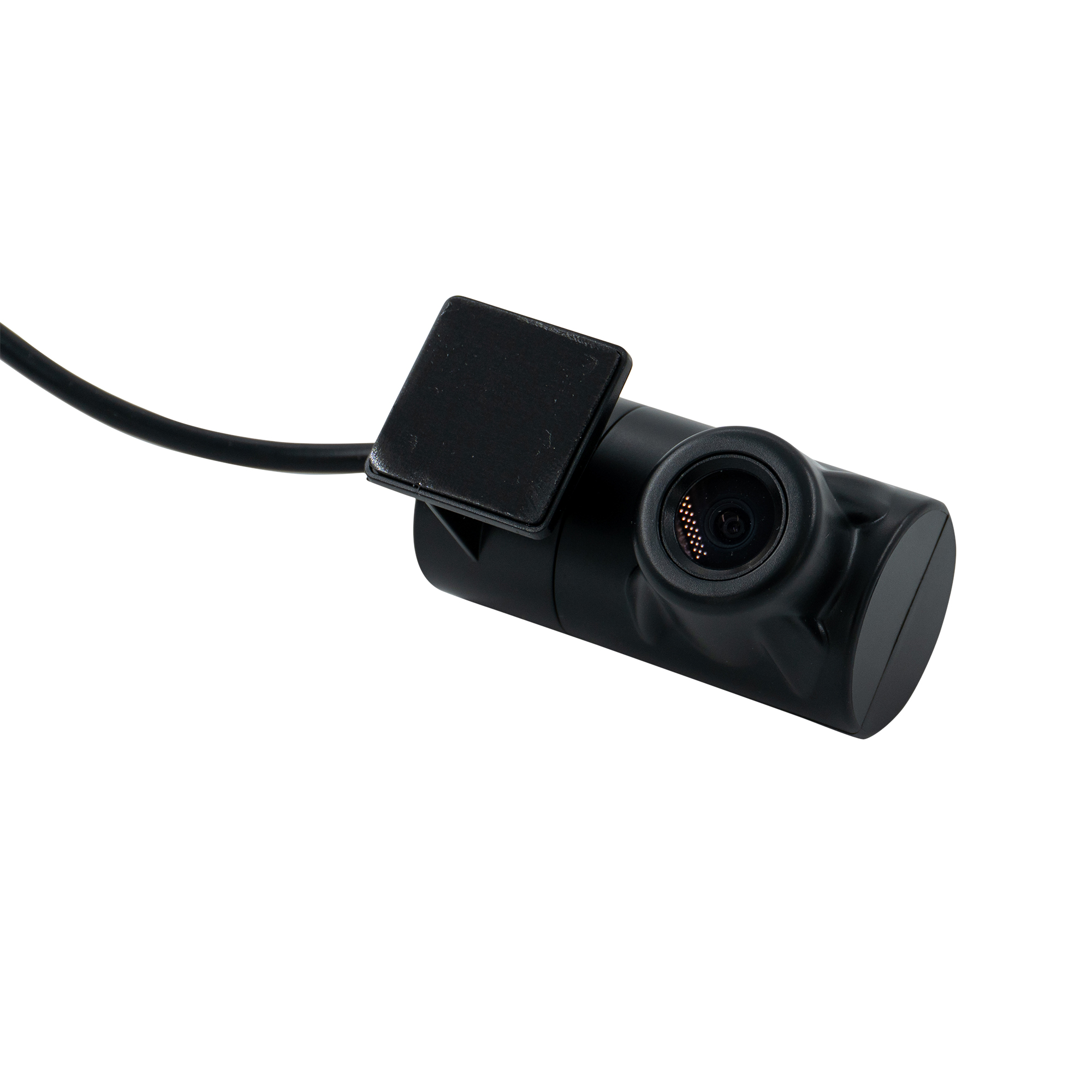

  • Rear: Sony IMX307

Display:

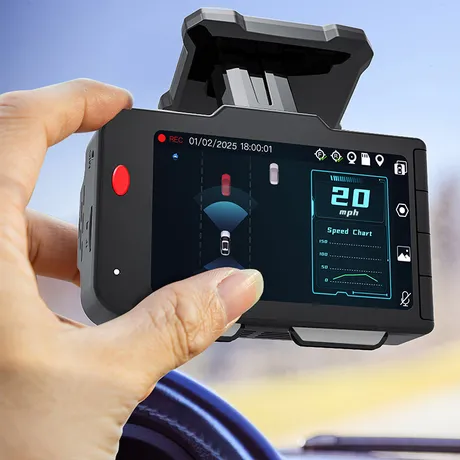

  • 3" IPS Color LCD

Lens:

  • Front: 140° / F1.75

  • Rear: 140° / F1.8

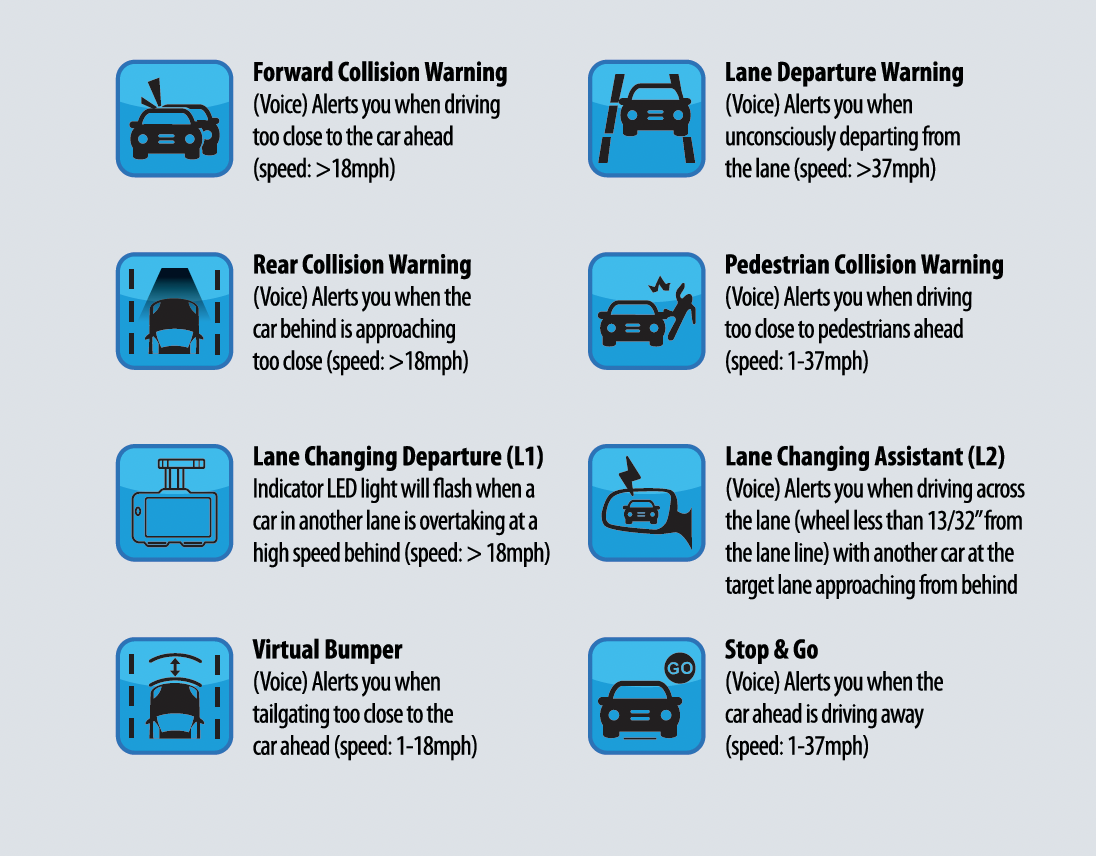

ADAS Functions:

  • Front: FCW, LDW, PCW, Stop & Go

  • Rear: RCW, LCA

Dual Channel Resolution:

  • Front: 4K (Max)

  • Rear: 1080P (Max)

Audio:

  • Built-in microphone and speaker

Video Format:

  • MP4 (H.265)

Memory Card Capacity:

  • Micro SD card support up to 256GB (64GB Micro SD Card Included in package)

G-Sensor:

  • 3-Axis

Parking Mode:

  • Supported (Hardwire kit NOT included in package)

Loop Recording:

  • Supported (1 / 2 / 3 / 5 minutes per segment)

Operating Temperature:

  • -20°C ~ 70°C

Languages:

  • English / Spanish

If You Are Interested in this product, Inquire At Your Local Authorized Retailer.

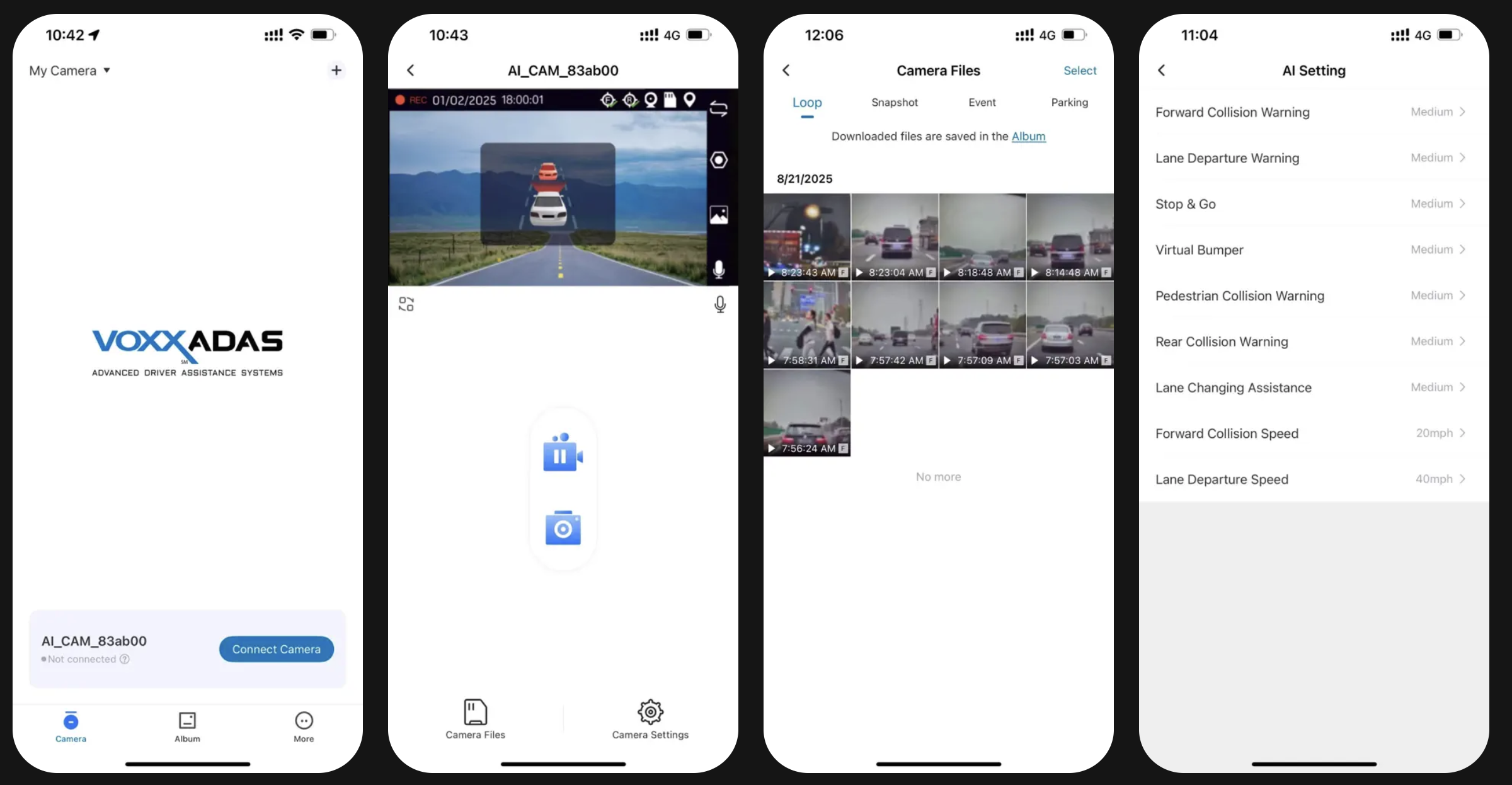

Learn how to set up and use your ACADC5 AI Dash Cam with this step-by-step tutorial. We’ll walk you through installation, menu navigation, and how to activate key ADAS safety features like Forward Collision Warning, Lane Departure Alert, Rear Collision Detection, and more.

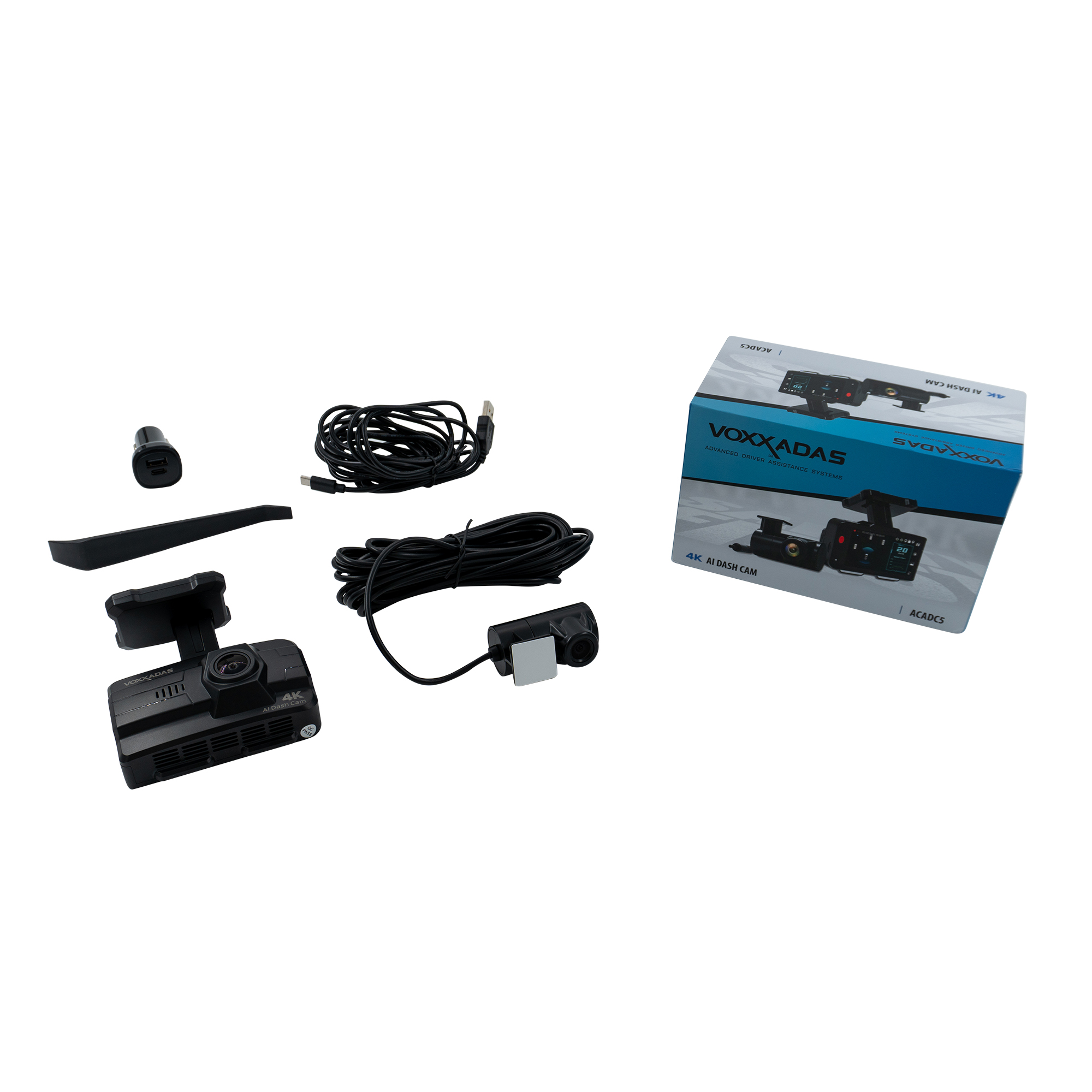

Dash Cam Unboxing!

Get a first look at the ACADC5 Dash Cam from VOXX By Gentex! In this video, we’re unboxing the ACADC5 and showing you everything that comes in the box. This compact and powerful dash cam is built to capture every moment on the road with crystal-clear video, smart features, and simple installation. Whether you're enhancing your vehicle's safety or adding a new upsell to your shop's lineup, the ACADC5 is the perfect choice.

Key Features

Wide Dynamic Range (WDR)

Balances bright and dark areas, captures clear and high-quality images even in low-light environments.

Section one image
Section one image
Section one image

Super Night Vision and Wide Angle View

Capture every detail—even in the dark.
With Super Night Vision and a wide 140° viewing angle, the ACADC5 delivers crystal-clear footage day or night, ensuring nothing goes unseen.

Voice Command and Alerts

Stay focused. Stay informed. The ACADC5 features real-time voice alerts for key driving events like Forward Collision, Lane Departure, Pedestrian Detection, and Rear Collision Warnings—so you can react faster without taking your eyes off the road.

Featured Products

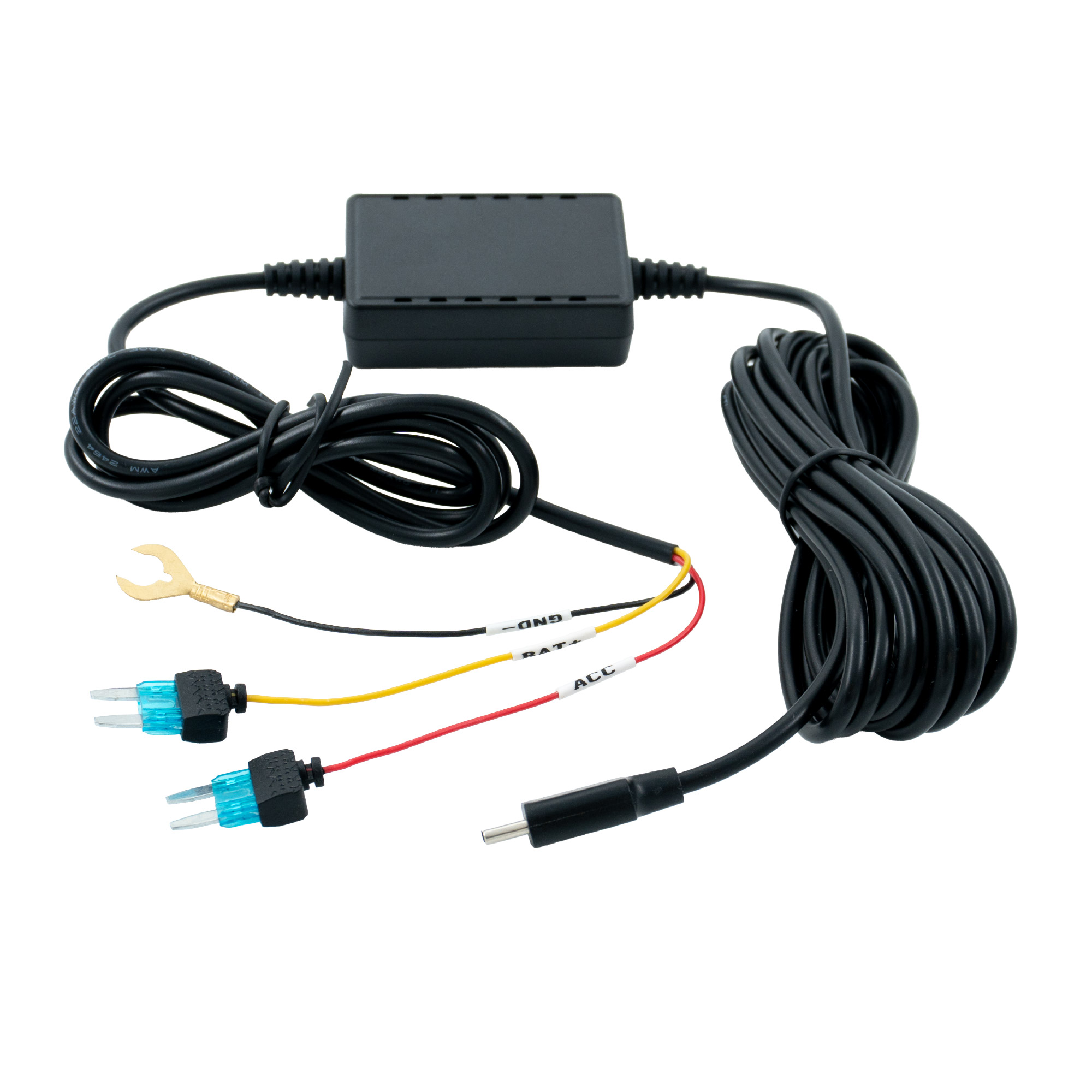

ACADCHW
